Dominator LP



Dominator LP

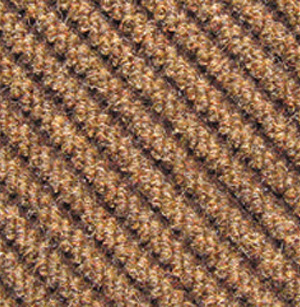

Dominator LP is an extremely durable carpet tile that offers all the benefits of Dominator but at a lighter weight. Designed with a darker base the ribs show the color of the tiles.






NextGen ScrollGallery thumbnailNextGen ScrollGallery thumbnailNextGen ScrollGallery thumbnailNextGen ScrollGallery thumbnailNextGen ScrollGallery thumbnailNextGen ScrollGallery thumbnailNextGen ScrollGallery thumbnailNextGen ScrollGallery thumbnail
Mid Grey 1512
Mid Grey 1512
Anthracite 1593
Anthracite 1593
Black Shadow 2343
Black Shadow 2343
Denim 1590
Denim 1590
Olive 1594
Olive 1594
Autumn Green 1595
Autumn Green 1595
Pebble 1514
Pebble 1514
Cranberry 1598
Cranberry 1598



Product Specifications

  STANDARD / NORMS DATA

PRODUCT COMPOSITION

Manufacturing Process DIN 61151 Non-woven/needlepunched
Surface Aspect ISO 2424 Diagonal pattern
Fiber CEE 83/623 100% Solution-dyed UV stabilized ASOTA® polypropylene
Primary Backing ISO 2424 Premium (eco) Bitumen

PRODUCT DIMENSION

Pile Height (± 0.5 mm) ISO 1765 0.25 inch
Total Height (± 7.5%) ISO 1765 0.37 inch
Pile Weight (± 7.5%) ISO 8543 39 oz/sy
Total Weight (± 7.5%) ISO 8543 142 oz/sy
Tile Size (± 2%) ISO 3018 19.69″ x 19.69″
Packaging   20 tiles per box or 54.18 sq. ft.

ELECTROSTATIC PROPERTIES

Stability EN 986 Pass
Walk on Test ISO TR 6356 < 2kV
Electrical Resistivity IBM / ICL Pass, for R.H. ≥ 40%
Sound Insulation ISO 140-8 ≥ 24dB
Electorstatic Propensity EN 1815 Permanently Anti-Static
Thermal Retention ISO 11092 0.13 m K/W Pass

COLOR FASTNESS

To Light ISO 105 B02  5
To Water ISO 105 E01  4 – 5
To Shampoo BS 1006  5
To Rubbing dry & wet ISO 105X12  4 – 5 dry/wet

FLAMMABILITY RATING

Radiant Panel Test ASTM E648 / DIN 4102 Class II
Smoke Density ISO 6925 / ASTM E662 Pass
Surface Flammability FF 1-70 / ASTM D2859 Pass

LEED

MR Credit 4 LEED-NC v. 3 For 1 – 2 points: $ value of all 50% recycled post-consumer
IEQ Credit 4.1 LEED-NC v. 3 For 1 point: low-emitting adhesive with a VOC of 50 g/l or less for indoor releasable carpet adhesive Releasable VOC 0 g/l
IEQ Credit 5 LEED-NC v. 3 For 1 point: semi-permanently installed entrance system at least 10′ in length and maintained on a weekly basis. This carpet tile is a semi-permanent installation
