Diplomat
Designed to be a long-term solution for heavy foot traffic and cart traffic, Diplomat Carpet Tiles are tough enough to use in your busiest traffic areas. The perfect solution for entryways or workplaces in retail spaces.
Mink 9959
Smoke 9459

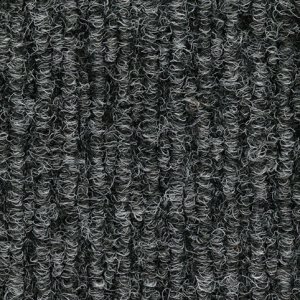

Carbon 9859
Tan 9359
Heath 9259
Product Specifications
| STANDARD / NORMS | DATA | |
|
PRODUCT COMPOSITION |
||
| Manufacturing Process | DIN 61151 | Non-woven/needlepunched |
| Surface Aspect | ISO 2424 | High / Low Structured Loop / Dirt Pocket Pattern |
| Fiber | CEE 83/623 | 100% solution-dyed UV stabilized ASOTA™ polypropylene |
| Primary Backing | ISO 2424 | Premium (eco) Bitumen or TacFast™ |
|
PRODUCT DIMENSION |
||
| Pile Height ( + or – 0.5 mm) | ISO 1765 | 0.33 inch |
| Pocket Height ( + or – 7.5%) | ISO 8543 | 0.16 inch |
| Total Height ( + or – 7.5%) | ISO 1765 | 0.44 inch |
| Pile Weight ( + or – 7.5%) | ISO 8543 | 60 oz/sy |
| Total Weight ( + or – 7.5%) | ISO 8543 | 170 oz/sy |
| Tile Size ( + or – 2%) | ISO 3018 | 19 .69 x 19.69 |
| Packaging | 12 tiles per box or 32.5 sq. ft. | |
|
ELECTROSTATIC PROPERTIES |
||
| Stability | EN 986 | Pass |
| Walk on Test | ISO TR 6356 | < 2kV |
| Electrical Resistivity | IBM / ICL | Pass, for R.H. ≥ 40% |
| Sound Insulation | ISO 140-8 | ≥ 24dB |
| Electorstatic Propensity | EN 1815 | Permanently Anti-Static |
| Thermal Retention | ISO 11092 | 0.13 m K/W Pass |
|
COLOR FASTNESS |
||
| To Light | ISO 105 B02 | 5 |
| To Water | ISO 105 E01 | 5 |
| To Shampoo | BS 1006 | 5 |
| To Rubbing dry & wet | ISO 105X12 | 4 – 5 dry/wet |
|
FLAMMABILITY RATING |
||
| Radiant Panel Test | ASTM E648 / DIN 4102 | Class II |
| Smoke Density | ASTM E662 | Pass |
| Surface Flammability | FF 1-70 / ASTM D2859 | Pass |
|
LEED |
||
| MR Credit 4 | LEED-NC v. 3 For 1 – 2 points: $ value of all | 50% recycled post-consumer |
| IEQ Credit 4.1 | LEED-NC v. 3 For 1 point: low-emitting adhesive with a VOC of 50 g/l or less for indoor releasable carpet adhesive | Releasable VOC 0 g/l |
| IEQ Credit 5 | LEED-NC v. 3 For 1 point: semi-permanently installed entrance system at least 10′ in length and maintained on a weekly basis. | This carpet tile is a semi-permanent installation |
